Crusher Jally aggregate conveyor systems with dramatic storm clouds approaching at Tirupati Balaji Blue Metals LLP, Virudhunagar, Tamil Nadu
8 Material Types

Everything Your
Project Needs.

Precision-graded M-Sand, P-Sand, Crusher Jally, Blue Metals & GSB-WMM — all from a single Government-approved source in Virudhunagar, Tamil Nadu.

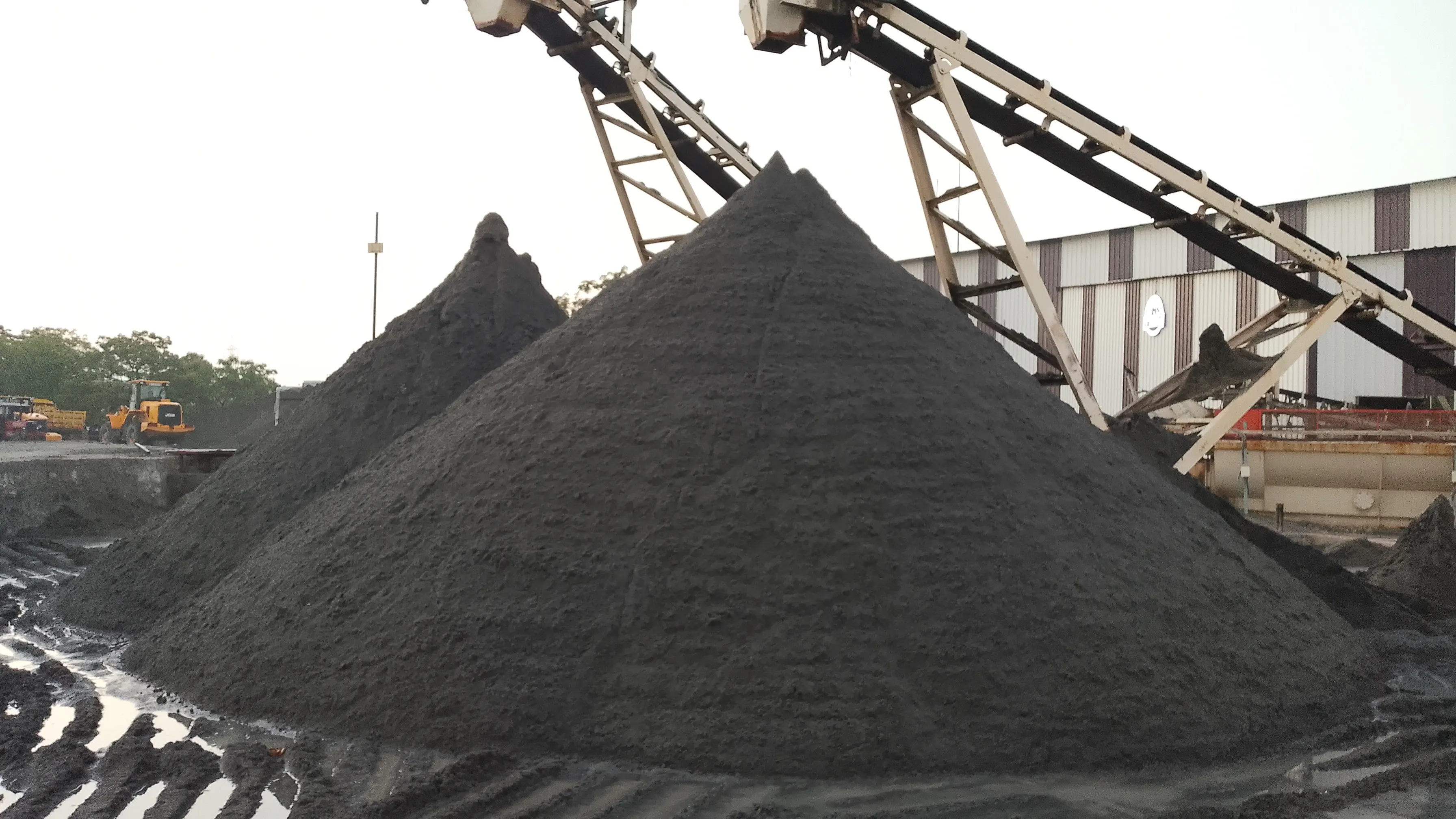

Large Manufactured Sand (M-Sand) stockpiles under conveyor belts in daylight at Tirupati Balaji Blue Metals LLP, Virudhunagar, Tamil Nadu Manufactured Sand
Manufactured Sand

M-Sand — The Superior Alternative to River Sand.

Manufactured Sand (M-Sand) is produced by crushing hard granite rock into fine, cubical particles and then washing it to remove excess dust and impurities. It is designed to fully replace river sand in concrete and structural applications, offering superior consistency that naturally mined river sand simply cannot guarantee.

Our M-Sand is graded to Zone II as per IS 383, ensuring it meets the strength and workability requirements of every concrete mix design from M15 to M50. Each batch is washed and screened before dispatch.

Technical Specifications
Type Manufactured Sand (IS 383 Type M)
Grading Zone Zone II (conforming to IS 383)
Max Particle Size 4.75 mm
Shape Cubical / Angular — machine crushed
Source Material Hard granite rock
Processing Crushed, washed & graded
Ideal Uses
RCC Concrete Columns & Beams Slab Casting Foundations Precast Elements Block Filling

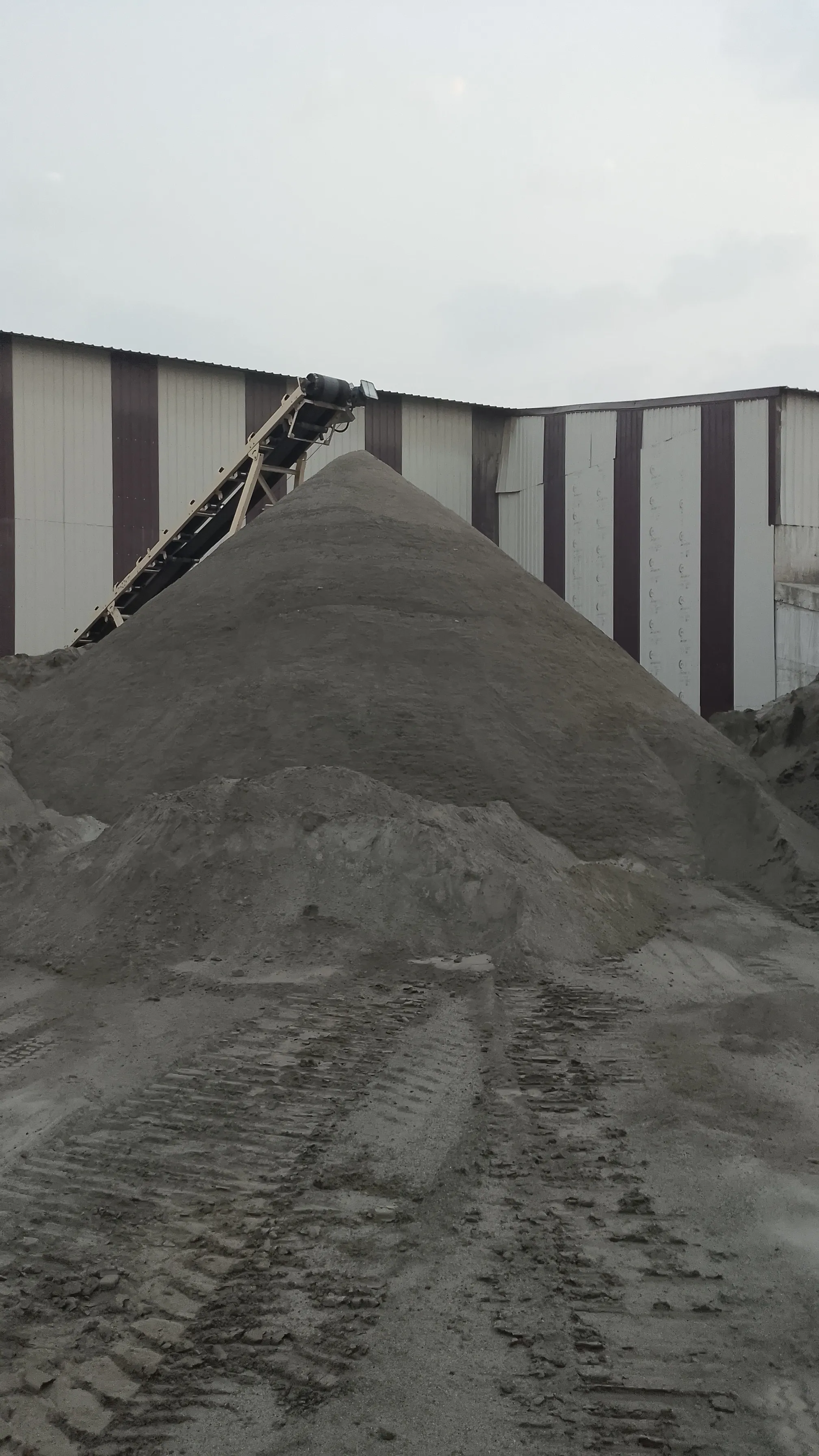

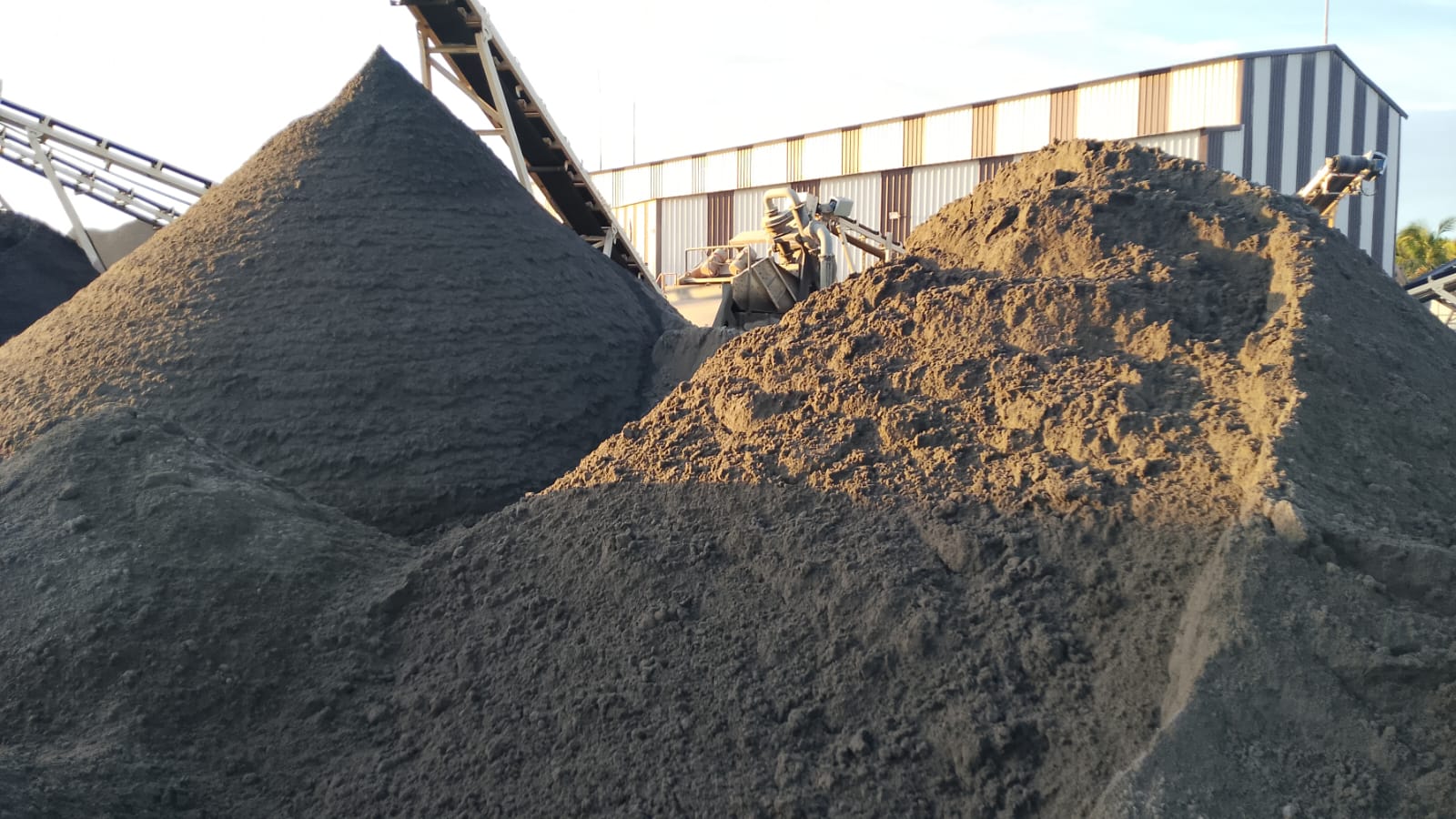

Fine P-Sand (Plastering Sand) conical stockpile at Tirupati Balaji Blue Metals LLP, Virudhunagar, Tamil Nadu Plastering Sand
Plastering Sand

P-Sand — For a Finish That Actually Lasts.

Plastering Sand (P-Sand) is a finely processed manufactured sand specifically designed for wall plastering and masonry work. Unlike M-Sand, P-Sand has a finer gradation and smoother particle shape distribution — which allows it to bond better with cement and spread evenly on wall surfaces.

Poor plastering sand leads to cracks, peeling, and surface failures within months. Our P-Sand is washed, graded, and screened to deliver the consistent fineness that professional plasterers demand for both interior and exterior applications.

Technical Specifications
Type Plastering Sand (Fine Manufactured Sand)
Max Particle Size < 2.36 mm
Gradation Fine — screened for uniform fineness
Source Material Crushed granite rock
Processing Crushed, washed & fine-screened
Suitable Cement Ratio 1:4 to 1:6 (cement:sand by volume)
Ideal Uses
Interior Wall Plastering Exterior Plastering Ceiling Work Block Masonry Joints Tile Adhesive Base
Blue Metals and crushed granite aggregate stockpiles at Tirupati Balaji Blue Metals LLP crushing plant, twilight, Virudhunagar, Tamil Nadu Crushed Aggregates
Crushed Aggregates

Blue Metals & Aggregates — The Structural Backbone.

Blue Metals are crushed hard-rock granite aggregates — the coarse aggregate component in concrete that provides structural strength, rigidity, and durability to any construction element. At Tirupati Balaji Blue Metals LLP, we supply them in multiple precise sizes to match the exact specification of your structural design.

Available in 6 MM, 12 MM, 20 MM, and 40 MM sizes — each graded separately to IS 383 standards and supplied consistently from our own crushing facility. No mixing of sizes, no inconsistent gradation.

Technical Specifications
Material Type Crushed Granite — Coarse Aggregate
IS Standard IS 383 — Specification for Coarse and Fine Aggregates
Available Sizes 6 MM, 12 MM, 20 MM, 40 MM
Shape Cubical / Angular (Crushed)
Specific Gravity 2.60 – 2.70 (approx.) ⚠️ Client to verify
Water Absorption < 2% (approx.) ⚠️ Client to verify
Ideal Uses
Structural Concrete Road Base Layers Drainage Fills Retaining Walls Compound Flooring

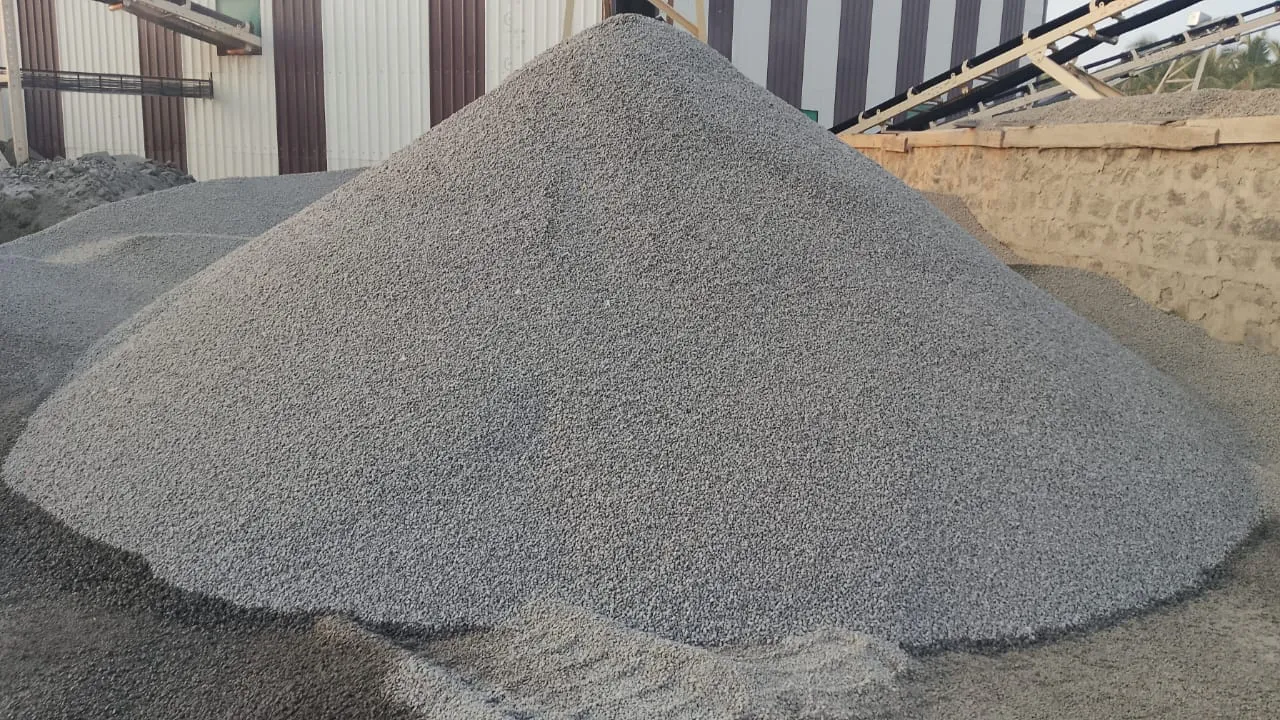

Fine 6mm Crusher Jally aggregate stockpile at Tirupati Balaji Blue Metals LLP, Virudhunagar, Tamil Nadu 6 MM · 1/4"
Crusher Jally

6 MM Crusher Jally — The Finest Aggregate.

The smallest size in our crusher jally range, 6 MM Jally (also called 1/4" chip or pea gravel size) is produced from hard granite rock crushed to a precise 4.75 mm – 6.3 mm gradation. It is used in applications where a fine, dense aggregate matrix is needed for maximum bond strength and minimal voids.

Its fine size allows it to pack tightly, making it ideal for tile-bedding mortar, plaster undercoats, grout work, and any concrete application requiring a smooth, dense mix.

Technical Specifications
Size Range 4.75 mm – 6.3 mm
Common Name 6 MM Jally / 1/4" Chips
IS Standard IS 383 — Graded Coarse Aggregate
Source Crushed hard granite rock
Ideal Uses
Tile Bedding Grout Mixes Fine Concrete Filter Layers

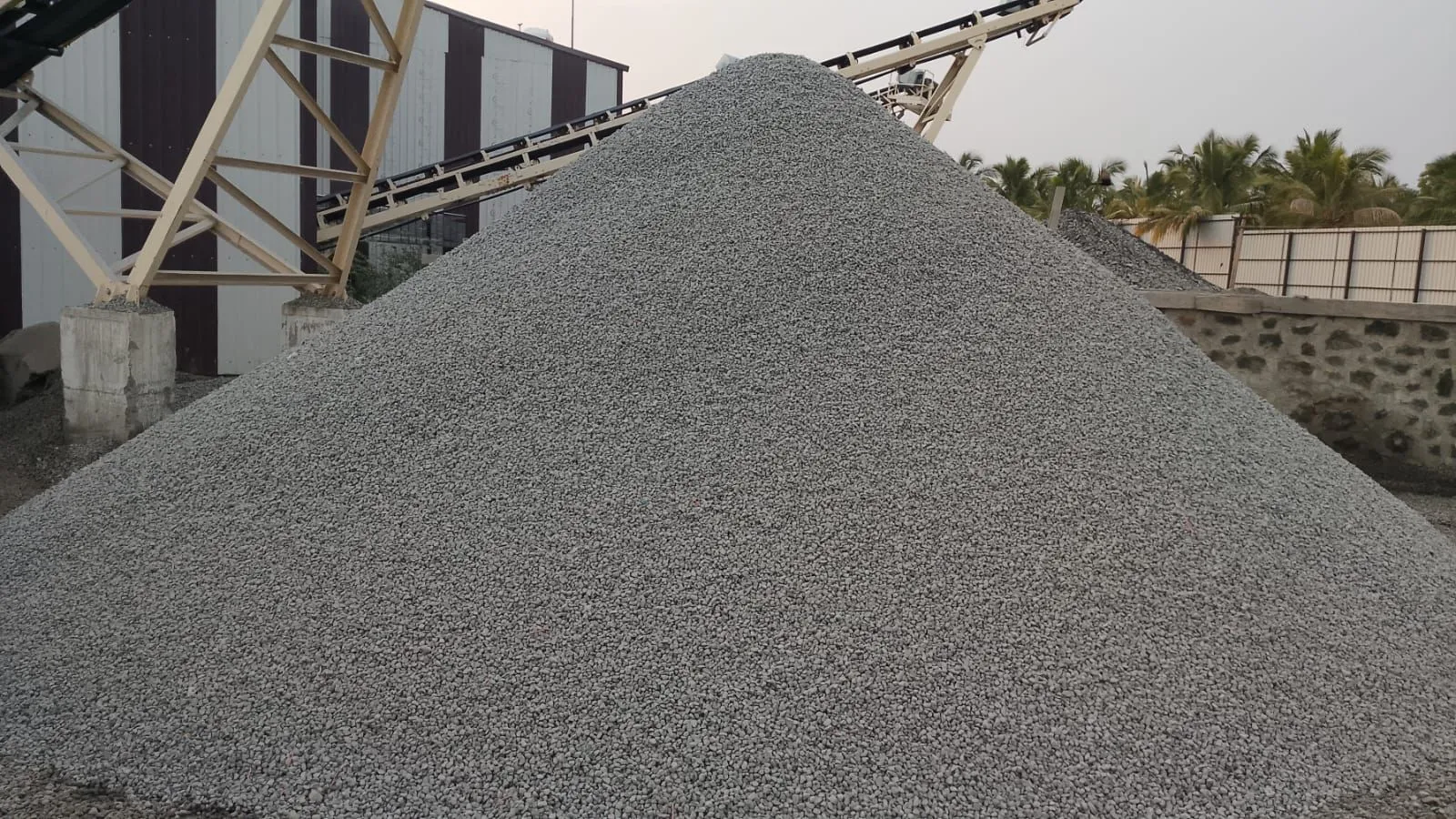

12mm Crusher Jally aggregate stockpiles with retaining wall at Tirupati Balaji Blue Metals LLP, Virudhunagar, Tamil Nadu 12 MM · 1/2"
Crusher Jally

12 MM Crusher Jally — The Structural Workhorse.

12 MM Jally (1/2 inch) is one of the most widely used aggregate sizes in residential and commercial construction. Its moderate size gives concrete excellent workability — allowing the mix to flow around reinforcement bars easily — while contributing high compressive strength to the finished element.

Specified for RCC slabs, roof concrete, columns, beams, and most cast-in-place structural work where a balance of strength and pumpability is required.

Technical Specifications
Size Range 10 mm – 12.5 mm
Common Name 12 MM Jally / 1/2" Aggregate
IS Standard IS 383 — Graded Coarse Aggregate
Best Concrete Grades M20, M25, M30 and above
Source Crushed hard granite rock
Ideal Uses
RCC Roof Slabs Columns & Beams Staircases Pump Concrete Precast Work

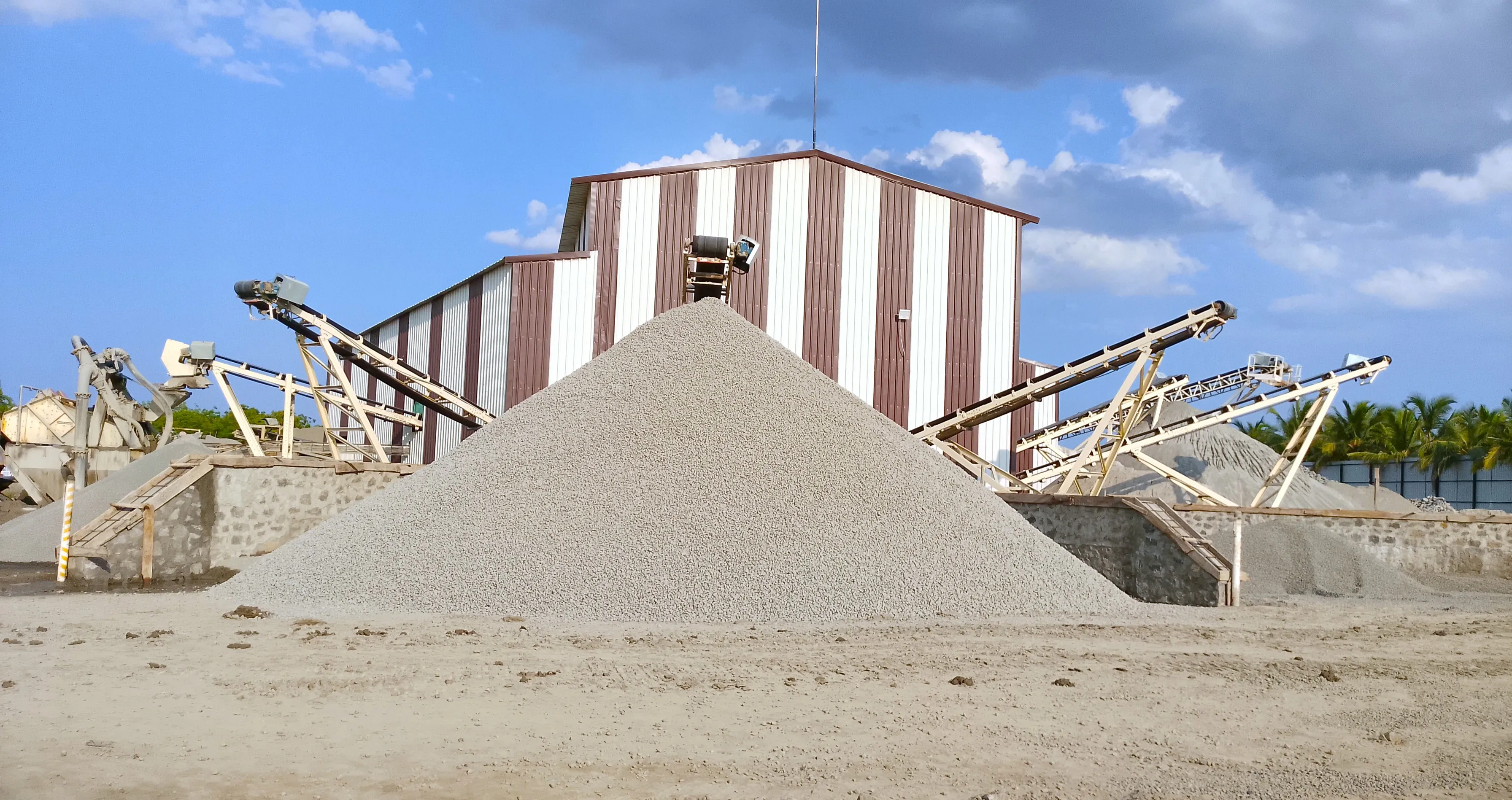

20mm standard Crusher Jally aggregate pile with conveyor discharge at Tirupati Balaji Blue Metals LLP, Virudhunagar 20 MM · 3/4" · Most Popular
Crusher Jally

20 MM Crusher Jally — The Industry Standard.

20 MM Jally (3/4 inch) is the most commonly specified aggregate in Indian construction — and for good reason. It hits the ideal balance between strength, workability, and economy for general-purpose structural concrete of every grade.

Our 20 MM Jally is precisely screened so every particle falls in the 16 mm – 19 mm range, conforming to IS 383. It is the default aggregate for most RCC mix designs and is widely used from residential house-building to large commercial and infrastructure projects.

Technical Specifications
Size Range 16 mm – 19 mm
Common Name 20 MM Jally / 3/4" Aggregate (Standard)
IS Standard IS 383 — Graded Coarse Aggregate
Suitable Grades M15 to M50 and above
Source Crushed hard granite rock
Ideal Uses
All Structural Concrete Foundations Slabs & Beams General Construction Commercial Projects

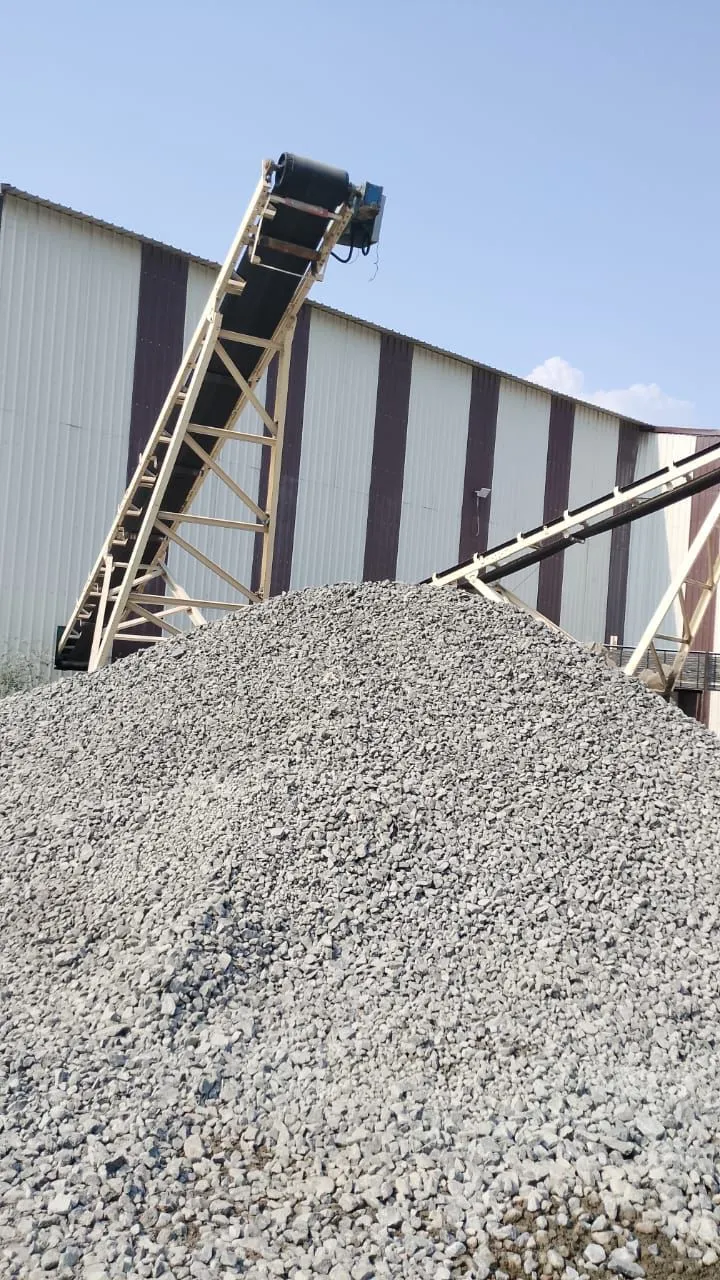

Coarse 40mm Crusher Jally aggregate being discharged from conveyor with dust at Tirupati Balaji Blue Metals LLP plant, Tamil Nadu 40 MM · 1½"
Crusher Jally

40 MM Crusher Jally — For Heavy-Duty Applications.

40 MM Jally (1½ inch) is the coarsest aggregate in our range, used where maximum load-bearing capacity and volume efficiency matter most. Its larger particle size reduces the total cement paste required and improves the economy of mass concrete pours.

This is the aggregate of choice for deep pile foundations, large raft slabs, retaining structures, and any infrastructure project where durability under sustained load is critical.

Technical Specifications
Size Range 31.5 mm – 40 mm
Common Name 40 MM Jally / 1½" Coarse Aggregate
IS Standard IS 383 — Graded Coarse Aggregate
Source Crushed hard granite rock
Ideal Uses
Deep Foundations Mass Concrete Raft Slabs Sub-Base Layers Infrastructure
Wheel loader handling GSB-WMM road base aggregate material at Tirupati Balaji Blue Metals LLP yard, Virudhunagar, Tamil Nadu Road Base Materials
Road Base Materials

GSB-WMM — Built for Roads That Last.

Granular Sub-Base (GSB) and Wet Mix Macadam (WMM) are the engineered base-layer materials that form the structural foundation of any road. They distribute traffic loads across the sub-grade, provide drainage, and prevent pavement failure — making their quality non-negotiable.

Our GSB-WMM supply conforms to IRC SP:19 and MORTH Section 300/400 specifications, making it suitable for both Government road projects and private residential road works. We supply for PWD contracts, municipal roads, campus roads, and driveway bases.

Technical Specifications
GSB Standard MORTH Section 300 / IRC SP:19
WMM Standard MORTH Section 400 / IS 2386
Gradation As per MORTH Table 300-1 / 400-1
Source Crushed granite — processed at our facility
Application Road sub-base & base course layers
Ideal Uses
PWD Road Projects Private Roads Driveway Base Campus Roads Municipal Roads Parking Areas

Not Sure What You Need?

Our team will help you identify the exact grade and quantity for your specific project — at no obligation. Just call or send us a message.
